Temperature Screening

Tripod Mount Thermal Camera Models - Best for Temporary Installations

Effective Up to 3 metres from Camera to Human

Mounting Height: 1.5 Metres

Elevation: +/-20°

If you have the need for a temporary fever screening solution, or have the need for a portable temperature screening solution, then these Thermal cameras from Hikvision will be a perfect fit for you.

Easily configured with a PC, these cameras can be deployed quickly, are light to manoeuvre and will provide an accurate means of detecting elevated temperatures during the COVID-19 Pandemic.

These cameras have an effective range of to 0.8m to 3m.

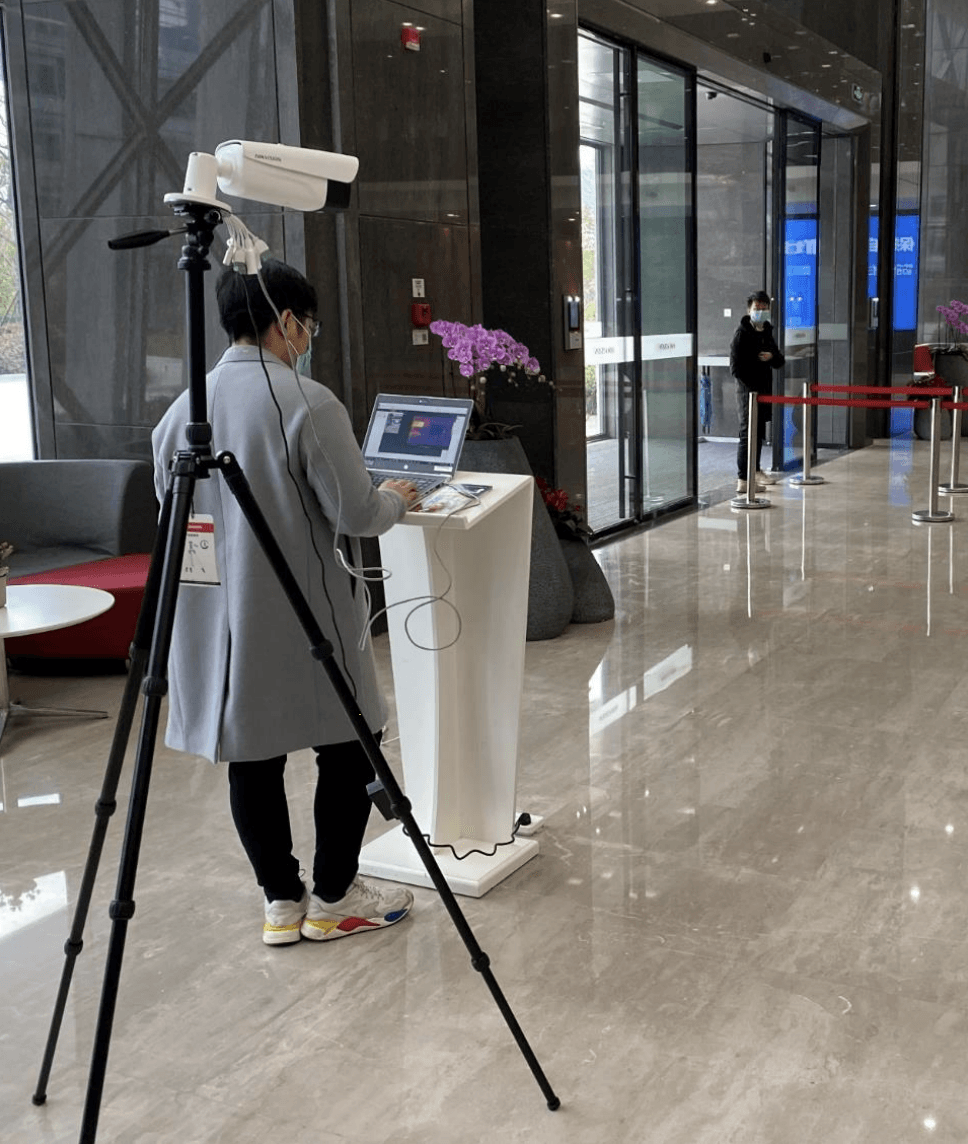

Temporary Tripod Mount (1.5m Height) : OPTION 1

Temporary: OPTION 1

DS-2TD2617B-6/PA

Temperature Screening
Thermographic Bullet Camera

High sensitivity thermal module with 160 x 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Support temperature screening
Support audio alarm
1.5m - 3m Effective Range

Download PDF Full Specs

Temporary Tripod Mount (1.5m Height) : OPTION 2

Temporary: OPTION 2

DS-2TD1217B-3/PA

Temperature Screening
Thermographic Turret Camera

High sensitivity thermal module with 160 x 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Support temperature screening
Support audio alarm
0.8m - 1.5m Effective Range

Download PDF Full Specs Watch our Review

Wall Mount Thermal Camera Model - Best for Permanent Installations

Effective Up to 7 metres from Camera to Human

Mounting Height: 2.5 Metres

Elevation: +/- 20°

If you have the need for a permanent fever screening solution, then this Thermal camera from Hikvision will be a perfect fit for you.

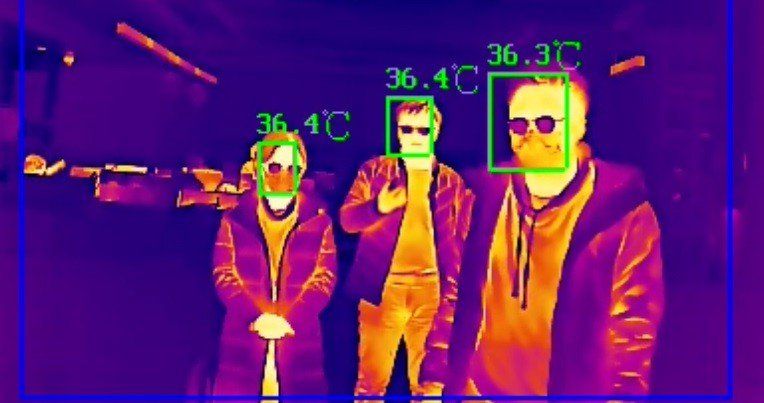

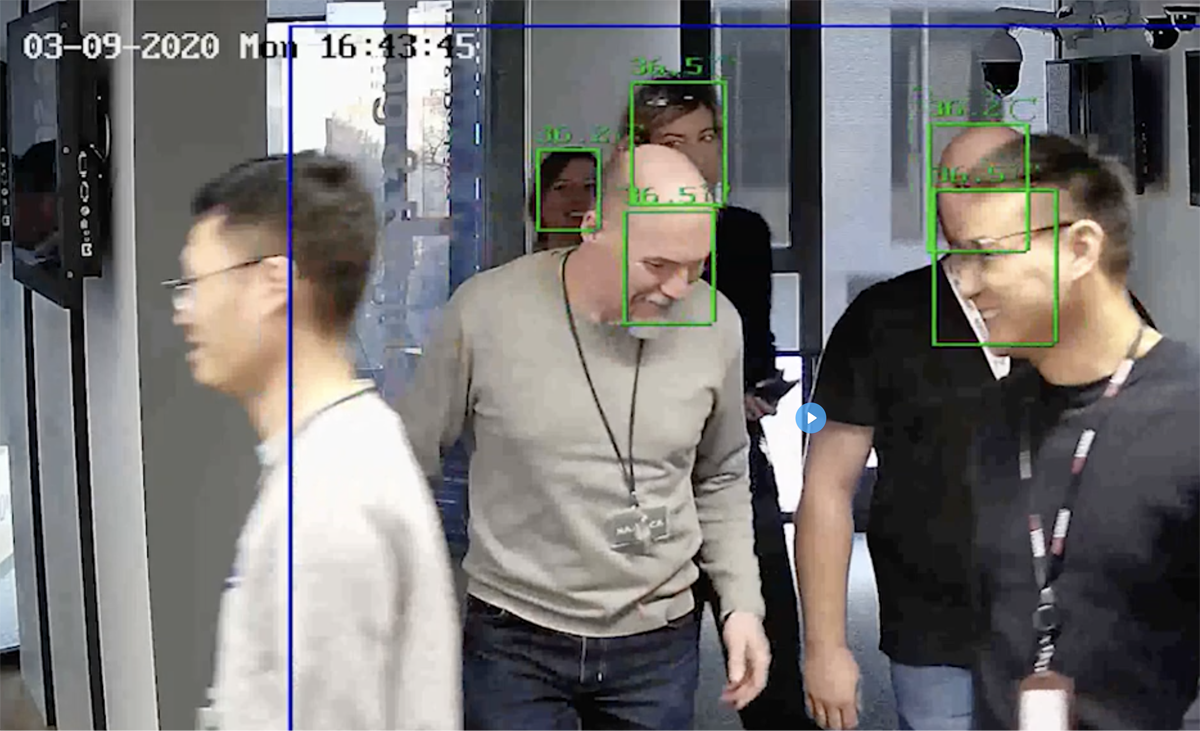

It provides group screening with high efficiency and supports simultaneous temperature screening of multiple people, greatly enhancing efficiency

Easily configured and monitored with a PC, locally or remotely, this camera can be mounted in your lobby or reception area and will provide an accurate means of detecting elevated temperatures during the COVID-19 Pandemic.

This camera has an effective range of to 2.0m to 7m.

Permanent Installation (2.5m Height)

Permanent Installation

DS-2TD2637B-10/P

Temperature Screening
Thermographic Bullet Camera

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Reliable temperature detection alarm
High quality optical module with 4 MP resolution
Bi-spectrum image fusion, picture-in-picture preview
2.0 -7.0 m Effective Range

Spec Sheet Full Specs

Full Specifications

DS-2TD2617B-6/PA Full Specifications

DS-2TD2617B-6/PA

Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 160×120
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD Less than 40 mK (@25°C,F#=1.1)
Focal Length 6.2mm
IFOV 2.74 mrad
Aperture F1.1
Field Of View 25° × 18.7° (H × V)
Min. Focusing Distance 0.6 m

DS-2TD2617B-6/PA

Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688×1520, 4MP
Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Field Of View 39.42° × 22.14° (H × V)
Focal Length 8mm
Shutter Speed 1s to 1/100,000s
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night Mode IR cut filter with auto switch
WDR 120 dB

DS-2TD2617B-6/PA

Client iVMS-4200, Hik-Connect
Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear Level; Impedance: 600Ω
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

Item Link

Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
Picture In Picture Display partial image of thermal channel on the full screen of optical channel

Temperature Range From 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy ± 0.5 °C

Main Stream Thermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
Simultaneous Live View Up to 20

Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Power PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
Power Consumption PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight 1.76 kg (3.88 lb)

DS-2TD1217B-3/PA Full Specifications

DS-2TD1217B-3/PA

Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 160×120
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD Less than 40 mK (@25°C,F#=1.1)
Focal Length 3.1mm
IFOV 5.48 mrad
Aperture F1.1
Field Of View 50° × 37.2° (H × V)
Min. Focusing Distance 0.2 m

DS-2TD1217B-3/PA

Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688×1520, 4MP
Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Field Of View 84° × 44.8°(H × V)
Focal Length 4mm
Shutter Speed 1s to 1/100,000s
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night Mode IR cut filter with auto switch
WDR 120 dB

DS-2TD1217B-3/PA

Client iVMS-4200, Hik-Connect
Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear Level; Impedance: 600Ω
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

Item Link

Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
Picture In Picture Display partial image of thermal channel on the full screen of optical channel

Temperature Range From 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy ± 0.5 °C

Main Stream Thermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
Simultaneous Live View Up to 20

Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Power PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
Power Consumption PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Weight 940 g (2.07 lb)

DS-2TD2637B-10/P Full Specifications

DS-2TD2637B-10/P

Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384×288
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD Less than 40 mK (@25°C,F#=1.0)
Focal Length 9.7mm
Focus Mode Athermalized
IFOV 1.75 mrad
Aperture F1.0
Field Of View 37.5° × 28.5° (H × V)
Min. Focusing Distance 1.2 m

DS-2TD2637B-10/P

Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688×1520, 4MP
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Field Of View 84° × 44.8° (H × V)
Focal Length 4mm
Focus Mode Fixed
Shutter Speed 1s to 1/100,000s
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night Mode IR cut filter with auto switch
WDR 120 dB

DS-2TD2637B-10/P

Client iVMS-4200, Hik-Connect
Web Browser Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear Level; Impedance: 600Ω
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
On-Board Storage Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

Item Link

DS-2TD2637B-10/P

Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
Picture In Picture Display partial image of thermal channel on the full screen of optical channel

Temperature Measurement Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range From 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy ± 0.5 °C

Main Stream Thermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
Simultaneous Live View Up to 20

DS-2TD2637B-10/P

Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Wiper No
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Power 24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
Power Consumption 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Work Temperature/Humidity From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight Approx. 1.82 kg (4.01 lb)
