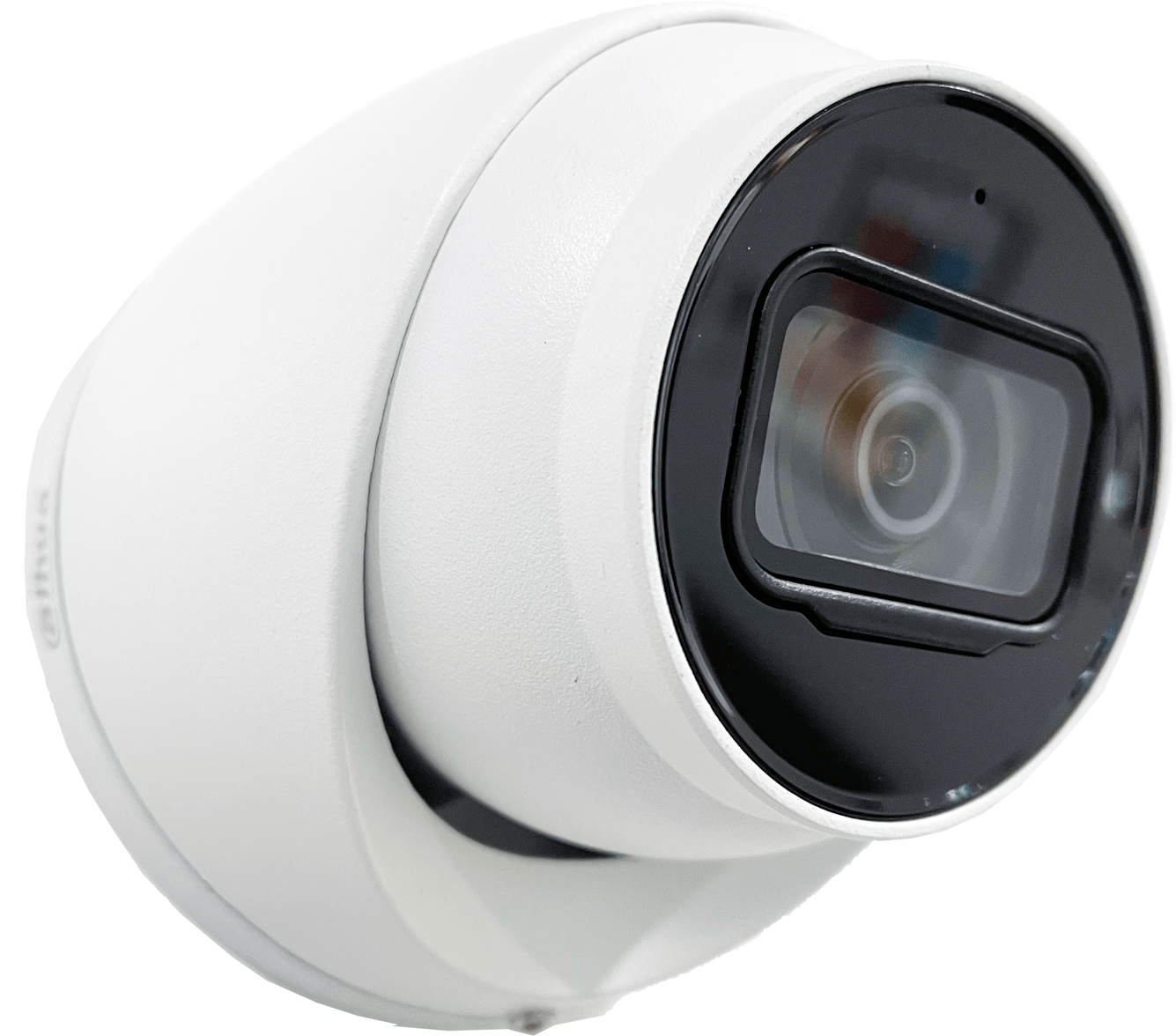

Dahua DH-IPC-HDW3641TM-AS 6MP SMD Turret Camera

Dahua DH-IPC-HDW3641TM-AS Camera

DH-IPC-HDW3641TM-AS - Dahua 6MP Camera

The Dahua 6MP Wizsense Network Turret comes with the new Wizsense technology. Wizsense is a depp learning algorithm which recognizes humans and vehicles with high accuracy. Combine this with a great nighttime image and you get a great camera.
Shop Dahua Packages

Features

  • 6MP,1/2.7”progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 6MP (3072 × 1728) @20 fps,and supports 4MP(2688 x 1520)@30fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus
Spec Sheet

  • Video Compression: H.265,H.264,H.264B,H.264H,MJPEG (only supported by sub stream)
  • Smart Codec: Smart H.265+/ Smart H.264+
  • Video Frame Rate: Main stream (3072 × 1728@1–20 fps/
  • 2688 × 1520@1–25/30 fps) Sub stream (704 × 576@1–25 fps/
  • 704 × 480@1–30 fps) Third stream (1920 × 1080@1–25/30 fps)
  • Stream Capability: 3 streams
  • Resolution: 3072 × 1728; 2688 × 1520; 2560 × 1440; 2304 ×1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps
  • Day/Night: Auto (ICR)/Color/B/W
  • BLC: Yes
  • HLC: Yes
  • WDR: 120 dB
  • Scene Self-adaptation: Yes
  • White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
  • Gain Control: Auto/Manual
  • Noise Reduction: 3D DNR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI): Yes (4 areas)
  • Smart Illumination: Yes
  • Defog: Yes
  • Image Rotation: 0°/90°/180°/270° Support 90°/270° with 1920 × 1080 resolution and lower.)
  • Mirror: Yes
  • Privacy Masking: 4 areas

  • Image Sensor: 1/2.7” 6Megapixel progressive scan CMOS
  • Max. Resolution: 3072(H) x 1728(V)
  • ROM: 128 MB
  • RAM: 512 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual, 1/3 s–1/100000 s
  • Min. Illumination: 0.005 Lux @F1.6
  • S/N Ratio: ＞56 dB
  • Illumination Distance: 50 m (164.0 ft)
  • Illuminator On/Off Control: Auto/Manual
  • Illuminator: Number 2 (IR LED)
  • Pan/Tilt/Rotation Range: Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚

  • Lens Type: Fixed-focal
  • Mount Type: M12
  • Focal Length: 2.8 mm; 3.6 mm
  • Max. Aperture: F1.6
  • Field of View: 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
  • Iris Type: Auto
  • Close Focus Distance: 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.3 ft)

  • Network: RJ-45 (10/100 Base-T)
  • SDK and API: Yes
  • Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
  • Interoperability: ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P
  • User/Host: 20 (Total bandwidth: 64M.)
  • Storage: FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
  • Browser: IE: IE8; IE9; IE11, Chrome, Firefox
  • Management Software: Smart PSS, DSS, DMSS
  • Mobile Phone: IOS; Android

  • Built-in MIC: Yes
  • Audio Compression: G.711a; G.711Mu; G.726; AAC; G.723

  • Alarm Event: No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

  • Certification: EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55024 EN 50130-4 EN55035 CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

IVS (Perimeter Protection): Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Power Supply: 12V DC (±30%), PoE (802.3af)

Power Consumption: <7.2W

Casing: Metal

Dimensions: Φ106 mm × 93.6 mm (4.17” × 3.69”)

Net Weight: 0.55 kg (1.21 lb)

Gross Weight: 0.71 kg (1.57 lb)
